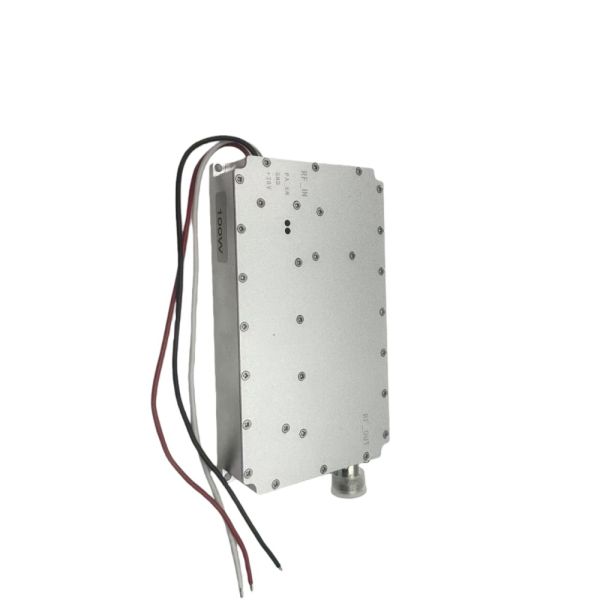

VTX FPV 100~6000MHz Power Amplifier Countermeasure Module 100W 28V Built-in Sweep Source With Enable Function

Brand Name : kimghz technology

Model Number : KH-PAC100W

Certification : CE

Place of Origin : Original/CHINA

MOQ : 10 Pieces

Price : Discussion

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000pieces/month

Delivery Time : 3-8days

Packaging Details : International Standard Packing

model : KH-PAC100W

Voltage : 28V

Current : ≤8.5A

Frequency : 100~6000MHz

Power Output : 100W

Weight : 520g

Dimension : 140*80*25mm

Other functions : With enable, containing a sweep frequency source

Contact Now

VTX FPV 100~6000MHz Power Amplifier Countermeasure Module 100W 28V Built-in Sweep Source With Enable Function

Product Overview

The Power Amplifier Countermeasure Module is a high-performance core component designed for UAV signal jamming applications. Integrating advanced GaN technology and patented heat dissipation systems, this module delivers superior performance in electronic protection systems.

Technical Specifications

Brand Name Kimghz technology
Model Number KH-PAC100W
Frequency 100~6000MHz (customizable); Bandwidth: 100-300MHz; Instantaneous wide bandwidth
Power Output 100 Watt
Interfaces & Control RF Output: N Female; Power: Red VCC (28V DC); Enable: White PA-EN (3.3-5V/28V); Ground: Black GND
Power Supply 28V
Current ≤8.5A
Impedance 50Ω (I/O)
VTX FPV 100~6000MHz Power Amplifier Countermeasure Module 100W 28V Built-in Sweep Source With Enable FunctionVTX FPV 100~6000MHz Power Amplifier Countermeasure Module 100W 28V Built-in Sweep Source With Enable FunctionVTX FPV 100~6000MHz Power Amplifier Countermeasure Module 100W 28V Built-in Sweep Source With Enable Function

Test Part

VTX FPV 100~6000MHz Power Amplifier Countermeasure Module 100W 28V Built-in Sweep Source With Enable Function

Key Features

· Class AB GaN design for optimal performance

· Instantaneous wide bandwidth coverage

· 50Ω input/output impedance

· Compact and lightweight construction

· High durability and reliability

· Built-in sweep source functionality

· Enable control capability
