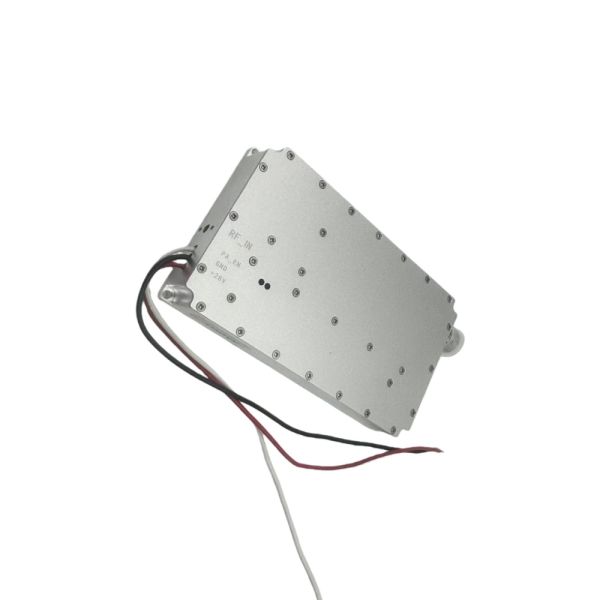

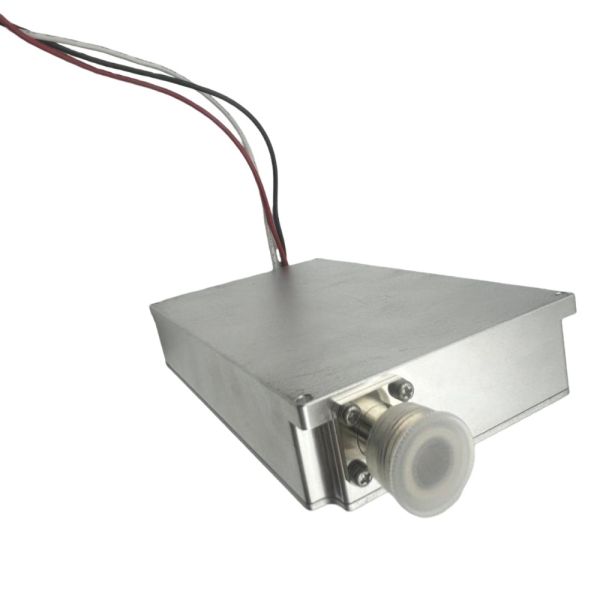

VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 150W Built-in Sweep Source With Enable Function

Brand Name : kimghz technology

Model Number : KH-PAC100W

Certification : CE

Place of Origin : Original/CHINA

MOQ : 10 Pieces

Price : Discussion

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000pieces/month

Delivery Time : 3-8days

Packaging Details : International Standard Packing

model : KH-PAC100W

Voltage : 28V

Current : ≤8.5A

Frequency : 100~6000MHz

Power Output : 100W

Other functions : With enable, containing a sweep frequency source

Contact Now

VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 100W Built-in Sweep Source With Enable Function
Product Overview

As a core component of high-end electronic protection equipment, the 100W Power Amplifier Countermeasure Module is specifically engineered for effective jamming and countering of drone signals within specific frequency bands. Leveraging high-power RF amplification technology, it generates directional signals in designated frequency ranges to block the communication links and navigation signals between drones and their control stations, thereby achieving drone repulsion or forced landing. It is widely utilized in critical infrastructure security, confidential venue protection, and emergency countermeasure operations.

Technical Specifications

Brand Name Kimghz technology
Model Number KH-PAC100W
Frequency 100~6000MHz (customizable); Bandwidth: 100-300MHz; Instantaneous wide bandwidth
Power Output 100 Watt
Interfaces & Control RF Output: N Female; Power: Red VCC (28V DC); Enable: White PA-EN (3.3-5V/28V); Ground: Black GND
Power Supply 28V
Current ≤8.5A
Impedance 50Ω (I/O)
VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 150W Built-in Sweep Source With Enable FunctionVTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 150W Built-in Sweep Source With Enable FunctionVTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 150W Built-in Sweep Source With Enable Function

Test Part

VTX FPV Power Amplifier Countermeasure Module 100~6000MHz 28V 150W Built-in Sweep Source With Enable Function

Key Features
  • Frequency range: 100 - 6000 MHz, bandwidth: 100 - 300 MHz
  • Class AB Gallium Nitride (GaN) design
  • Instantaneous wide bandwidth capability
  • 50-ohm input/output impedance
  • Compact size and lightweight construction
  • High reliability and ruggedness for harsh environment
